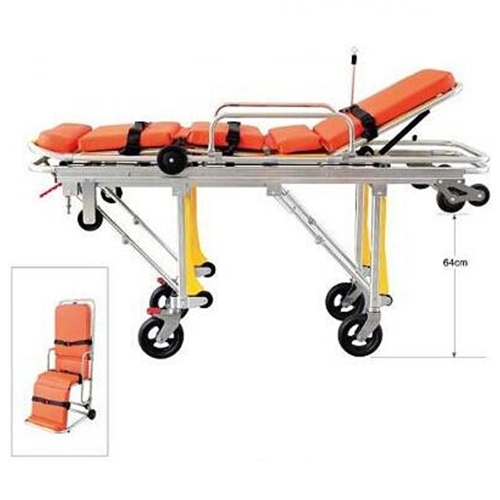

1.The aluminum alloy collapsible stretcher for ambulance has a separable stretcher with the main stretcher frame which could be removed from trolley and used as a separate stretcher, easy locking/unlocking system to lock the separable stretcher into the trolley
2.The separate stretcher with capability to convert into wheel chair
3.Two sets loading wheels to fit different height of ambulance board
4.The backrest can be adjusted from 0 - 65 deg by gas spring
5.Swing-down side rails to protect patient when transfer
6.The mechanical legs are controlled by the handles in both sides, there is a safety lever to control front and hind legs to fold while loading and prevent collapse while standing
7.Only one person can slide the stretcher on to the ambulance
8.The aluminum alloy collapsible stretcher for ambulance can be locked by the fixing device when it is in the ambulance
9.The aluminum alloy collapsible stretcher for ambulance is made of high-strength aluminum alloy
10.Φ 150mm wide rubber castors, two with breaks
11.Mainly used for ambulance, hospitals, emergency centers
Accessories:
1.Waterproof PVC mattress(5cm thickness foam)
2.3pcs belts for chest, hip and knee
3.Fixing device
Model |
High position |
Low position |
Maximum angle of the back |
N.W |
Load Bearing |
Packing |
||
Quantity |
Size(L*W*H) |
G.W |
||||||
N823 |
195×55×90cm |
195×55×34cm |
65° |
49kg |
180kg |
1 |
201×63×36cm |
55kg |
Shipment By Express Such as Fedex,UPS,DHL,TNT and etc,Would take 3-5 days
Shipment By Air would take 5-7 Days
Shipment By Ocean(Sea) would take 10-30 Days
